The performance of solar panels is significantly influenced by temperature changes. Solar panels are typically tested at a standard temperature of 25 degrees Celsius.
The Concept of Temperature Coefficient in Solar Panels
Definition and Significance of Temperature Coefficient
The temperature coefficient of a solar panel measures how quickly the panel loses efficiency as temperatures increase. This percentage per degree Celsius parameter is important as solar panels are normally operated at conditions where the surface temperature of the panel exceeds standard test conditions (25°C).
The lower the temperature coefficient, the better the performance at elevated temperatures, which is an important consideration when you are choosing solar panels for installations in areas exposed to high irradiance or hot ambient temperatures.
Factors Influencing Temperature Coefficient Values in Solar Panels
A solar panel temperature coefficient is affected by various factors. The type of photovoltaic material is an important factor. Monocrystalline silicon panels, being more efficient with better structural properties, typically have lower temperature coefficients than polycrystalline silicon panels, for example.
Moreover, new-age technologies such as N-type TOPCON cells and also Heterojunction Technology (HJT), to reduce the effect of heat on output power, lower still.
The Impact of Temperature Coefficient on Solar Panel Efficiency
Correlation Between Temperature Rise and Power Output Decline
Higher temperatures raise the temperature of the solar panel, which increases the electrical resistance and eventually decreases voltage. Ultimately, this leads to reduced overall power generation.
Thus, with a -0.35%/°C temperature coefficient, it means every degree Celsius above 25°C will decrease the efficiency of that panel by 0.35%. This loss equates to a significant amount in hot climates, where surface temperatures can reach above 60°C or more.
Real-World Scenarios Illustrating Efficiency Changes
The real-life pictures from WonVolt reveal the energy output difference due to temperature coefficients. The 605W panels — from a project in South Africa that leveraged more advanced cell technology for improved performance in an enviable high ambient temperature environment.
Likewise, an industrial roof installation in Iraq used 1.52MW systems since heat is a thermal event. The temperature coefficients of these panels govern the yield of energy in real-world conditions and those examples show how the temperature coefficient of the chosen panels matters.
Analyzing Different Types of Solar Panels and Their Temperature Coefficients
Monocrystalline vs Polycrystalline Solar Panels
Acrystalline solar panels have a more regular crystal structure and are likely to be more thermally stable than polycrystalline types. So here, they will outshine too, boasting a higher efficiency. Although poly panels are cheaper upfront, their higher temperature coefficients are a disadvantage in hotter climates, where efficiency losses may outweigh initial savings.
Thin-Film Solar Panels and Their Thermal Performance
Thin-film solar panels have novel thermal performance benefits. Generally, they operate at lower temperatures and are less sensitive to higher temperatures than silicon panels. However, they are less efficient, so you may need a bigger area to install an equivalent amount of energy output.
Recommendations for Optimizing Solar Panel Performance with WonVolt Products
Features of WonVolt Solar Panels for High-Temperature Environments
To function normally at high working temperatures, solar panels for high-temperature environments need special characteristics. To this end, advanced photovoltaic materials and cutting-edge technologies become critical. TOPCon solar cells with an N-type semiconductor, despite only a small part in the whole market, have shown a much higher efficiency and better resistance to high-temperature stagnation than the conventional PERC cells. Since temperature variation leads to loss of energy in those cells, these cells are perfect for installation in areas where extreme heat is a problem.

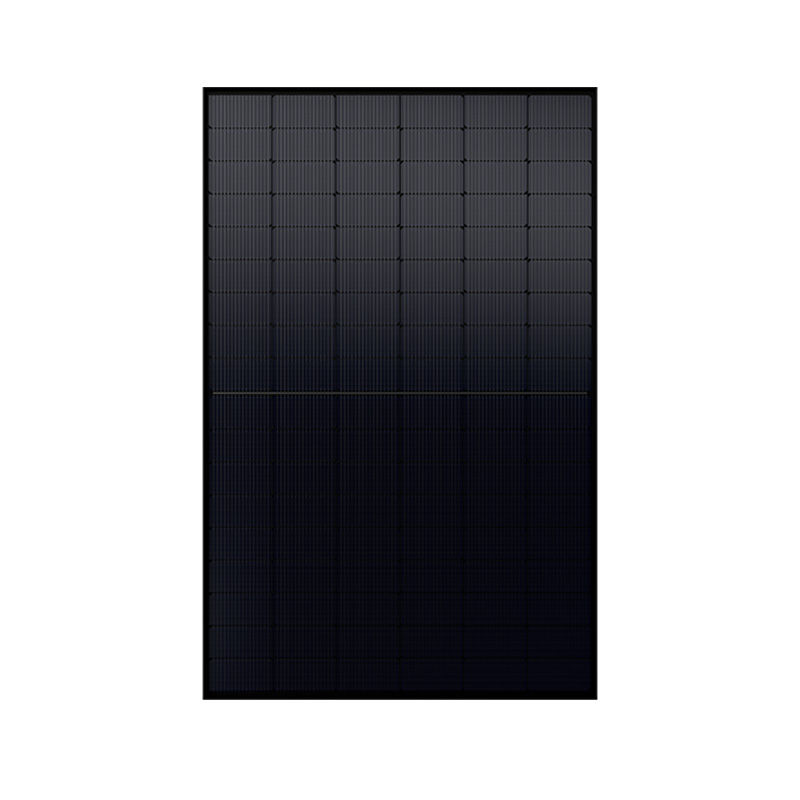

The thermal performance of solar panels also stems from their structural design. The 54JWU450-H8NS series is designed for home roofs with the highest output power and a low LCOE. The panels are backed by a 30-year warranty on linear power output, making them both durable and powerful.
These traits make such products a great benefit for projects in sunny geographical locations where heat can adversely affect energy output.
Installation Tips for Maximizing Efficiency Using WonVolt Solutions
In hot climates, solar panels are useful only if installed properly. Also, you should make sure there is enough room for airflow underneath the panels. By configuring panels accordingly depending on geographic location, panels are oriented at the optimal angle to catch sunlight all day throughout the year.
Another way to improve efficiency is by using state-of-the-art inverter systems. Inverters must be chosen according to the model and the essential requirements of the solar panel project. For instance, a recent South African industrial roof project used 605W panels in conjunction with 500KW inverters to get to 1.7MW total.
Another key factor to ensuring performance longevity is regular upkeep. Periodically cleaning off the panels to get rid of dust and debris can help avoid shading effects that can reduce efficiency. Modern solar comes with monitoring systems that can track energy production and the status and health of the system.
Long-Term Benefits of Choosing Low-Temperature Coefficient Solar Panels
Energy Yield Improvement Over Time
Low-temperature coefficient solar panels provide better energy yield in the long run due to lower efficiency loss from heat. As a case in point, at a temperature coefficient of -0.3%/ C, a panel would lose less power than one with a coefficient of -0.5%/ C in identical conditions. This difference can be quite material during the life of the system, especially in hotter regions where surface temperatures constantly exceed standard testing conditions.
Cost Savings and Return on Investment
Higher energy yield at lower temperatures also means savings on your electricity bill over time with low-temperature coefficient solar panels. Lower efficiency losses translate into more generation of electricity generation, reducing the dependency on grid power or backup energy sources.
Moreover, warranties for premium solar products drive down maintenance costs and system downtime through durable materials. Fusing new technologies into their design, WonVolt’s solutions fulfil the global impact goals on sustainability, whilst addressing the local climate-specific challenges.
FAQs
Q1. Why are N-type TOPCON solar cells well suited to high temperatures?
A: Not only do n-type TOPCON cells provide better performance overall, but their material properties also provide improved thermal stability, which helps nobility losses due to heat.
Q2. Why does a good installation improve the efficiency of the solar panels?
A: The right installation allows maximum exposure to the sun and effective dissipation using elevated mounting systems and appropriate direction, with orientation based on geographical location.
Q3. How come low-temperature coefficient panels are cheaper in the long run?
A: Fewer efficiency losses with heat means increased energy yields ultimately, so less reliance on energy from the grid, resulting in measurable cash savings across the lifespan of an installation.
