23.0 %
0~3 %
<1 %
0.40 %
Simple and modern surface, better compatible with dark roof.
Better performance during cloudly days, early morning and late afternoon.
Strong absorption in both the visible and near-infrared wavelengths.
0.4% annual degradation during year 2 - 25
Simple and modern surface, better compatible with dark roof.
Better performance during cloudly days, early morning and late afternoon.
Strong absorption in both the visible and near-infrared wavelengths.
0.4% annual degradation during year 2 - 25
♦ WonVolt 54JWU series solar module is born for residential roof.
♦ It has full black color which is perfect suitable for most dark roof, make your project looks pretty consistent and extreme elegance.
♦ Small size with high power output, home owners’ best choice than ever. Normal sliver color frame supported as well.
Product Description

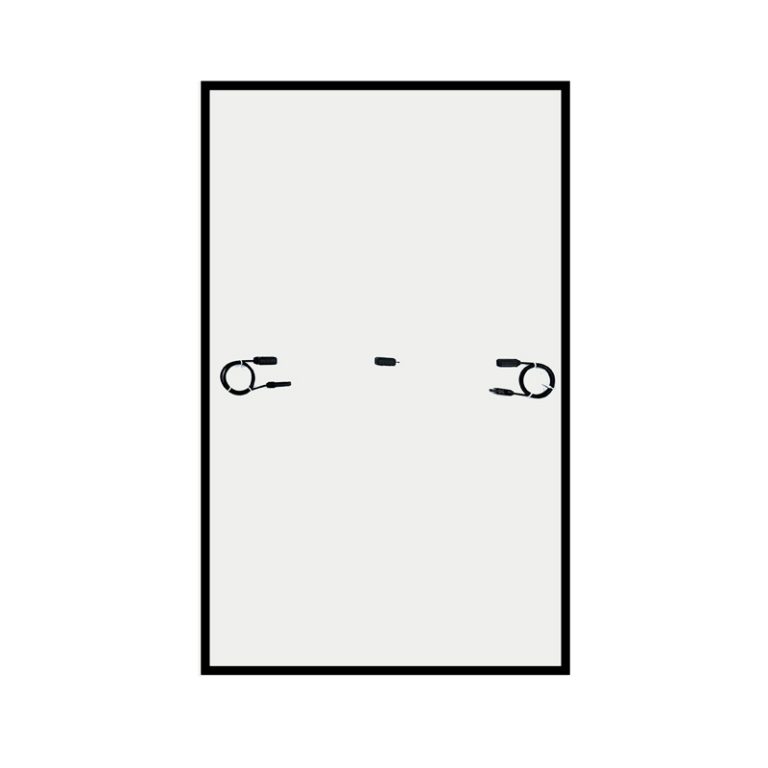

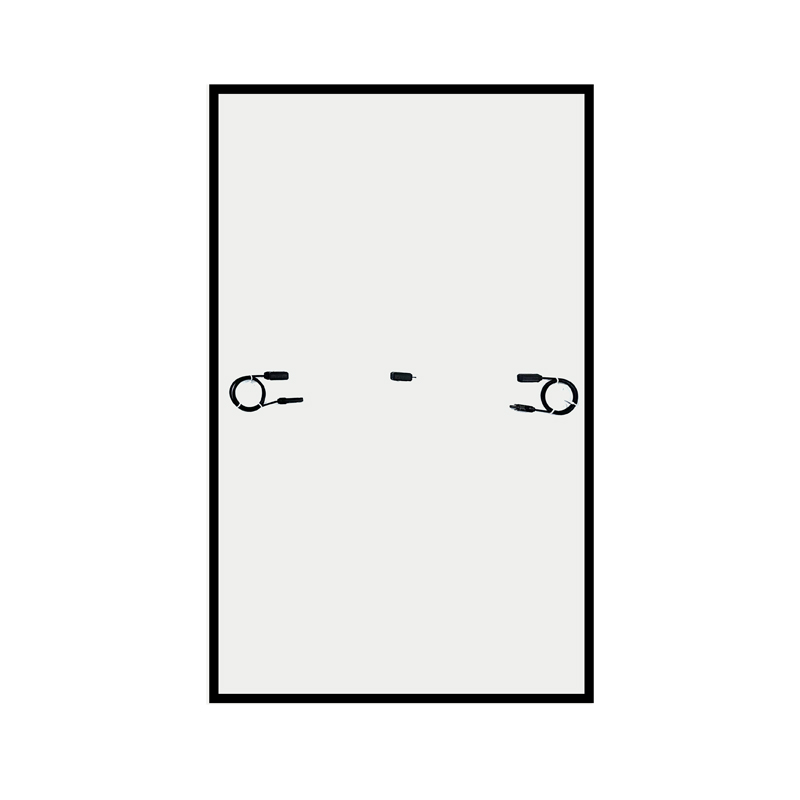

WV-54JWU Series Max. 450W
Best Choice For Villa Home Solar Power System

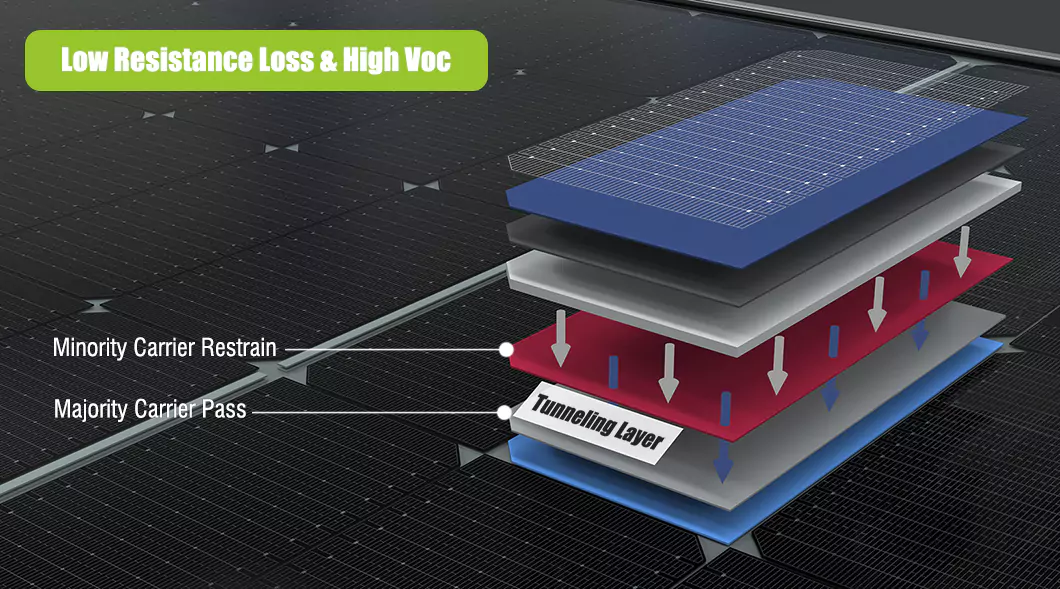

using intergrated advanced technologies
WonVolt WV-54JWU Series panel gives you higher power and lower LCOE.
Core Advantages

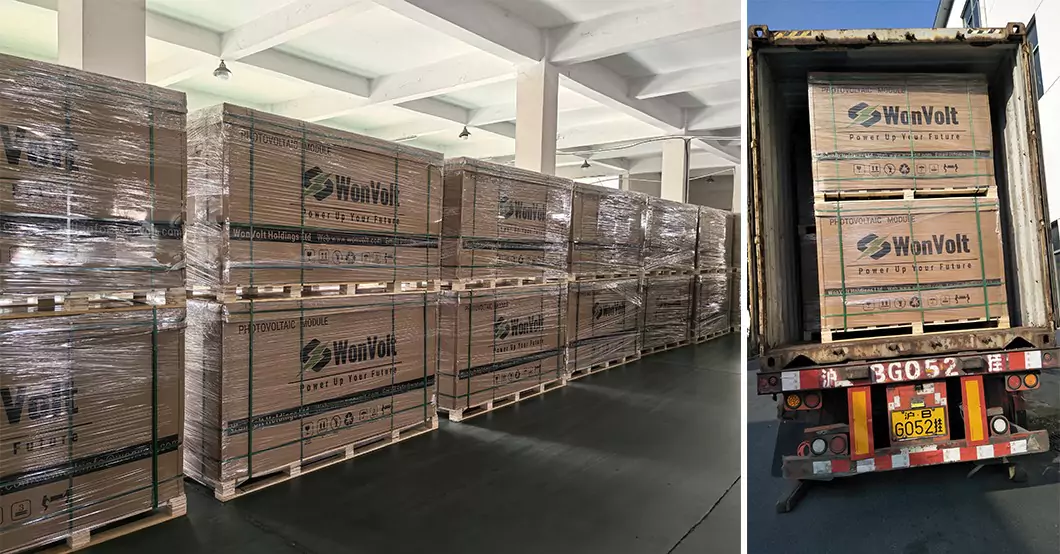

Solar Panel Production Line
TUV Certificate

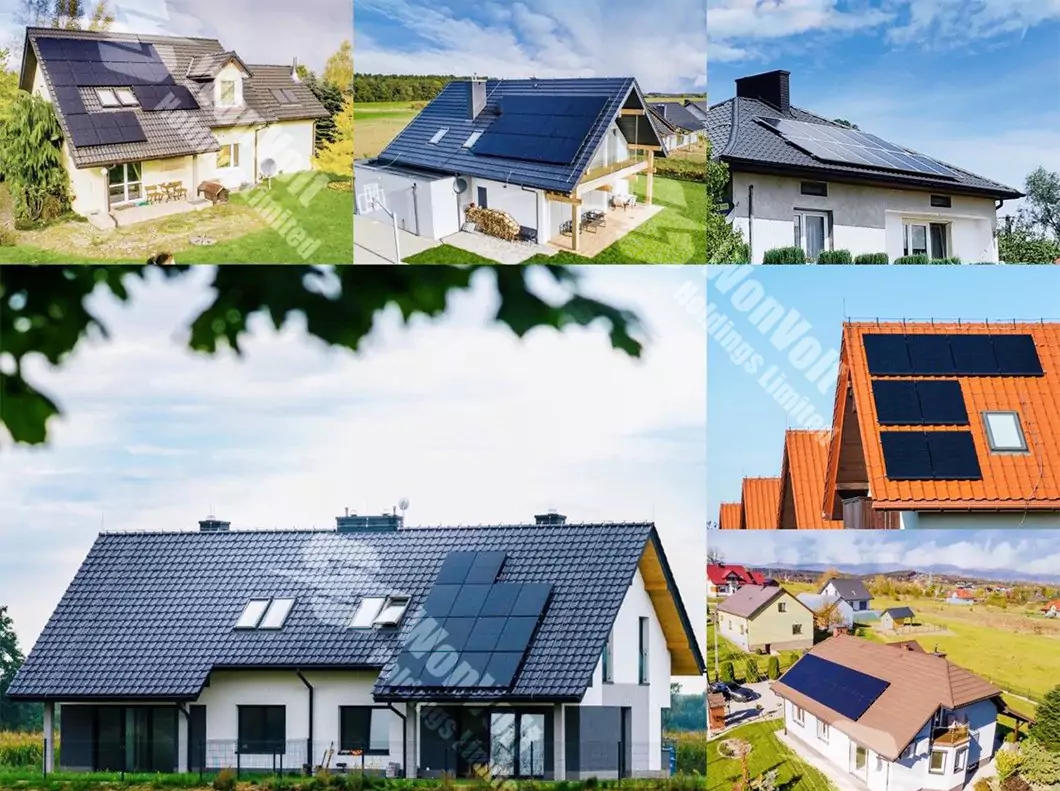

Successful Cases
| Cell Layout | 108(6×18) |
| Junction Box | IP68 |
| Output Cable | 4mm, ±1200mm length can be customized |

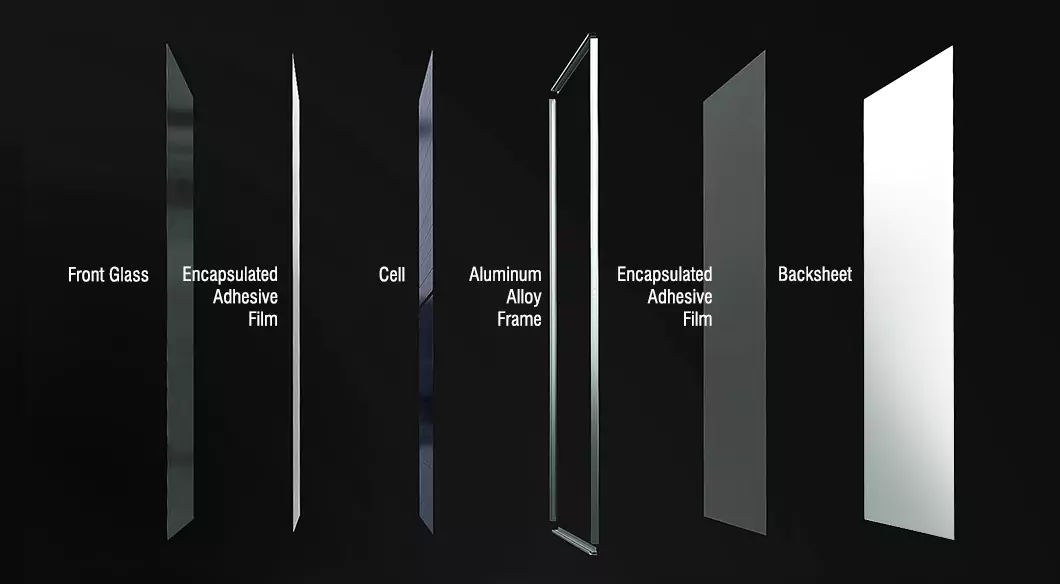

| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 20.8kg |

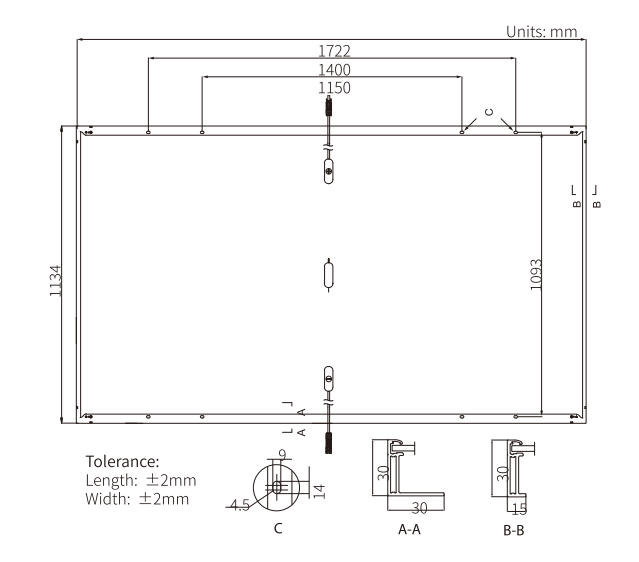

| Dimension | 1722x1134x30mm |
| Packaging | 36pcs per pallet/216pcs per 20’GP/936pcs per 40’HC |
| Module Type | WV-54JWU440-H8NS | WV-54JWU445-H8NS | WV-54JWU450-H8NS | |||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 440 | 329 | 445 | 333 | 450 | 337 |
| Open Circuit Voltage(Voc/V) | 39.83 | 37.40 | 40.03 | 37.58 | 40.23 | 37.77 |
| Short Circuit Current(Isc/A) | 14.15 | 11.43 | 14.23 | 11.49 | 14.31 | 11.55 |
| Voltage at Maximum Power(Vmp/V) | 33.56 | 30.62 | 33.76 | 30.81 | 33.96 | 30.99 |
| Current at Maximum Power(Imp/A) | 13.12 | 10.75 | 13.19 | 10.82 | 13.27 | 10.88 |
| Module Efficiency(%) | 22.5 | 22.8 | 23.0 | |||
| Front Side Maximum Static Loading | 5400Pa | ||||||||
| Rear Side Maximum StaticLoading | 2400Pa | ||||||||
| Hailstone Test | 25mm Hailstone at the speed of 23m/s | ||||||||
| Temperature Coefficient of Isc | +0.050%/℃ | |||||||
| Temperature Coefficient of Voc | -0.230%/℃ | |||||||
| Temperature Coefficient of Pmax | -0.290%/℃ | |||||||
